SHT2002 UTI Tape, Portable Ullage Temperature Interface Gauging Device (Gas-tight Type)
SHT2002 UTI Tape is a gas tight portable gauging device system designed to measure ullage, oil/water interface level, and temperature in single operation It is used for tank level measurement on marine vessel.

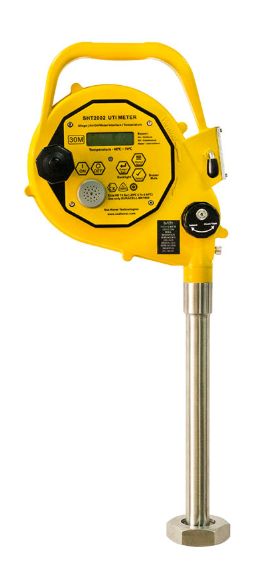

SHT2002 UTI Tape
Certified gas-tight system for accurate ullage, temperature, and oil/water interface measurement in oil and chemical tanker operations.
- Gas-tight (closed system)
- 30m, 35m tape length
- Oil/water interface detection
- Temperature detection
- Designed for hydrocarbons and corrosive liquid application
- For Oil and Chemical Tanker
SHT2002 UTI CHEM
Application: Chemical Tanker
- Gas-tight (closed system)
- 30m Tape length
- PEEK and FFKM rubber parts, special for chemical application
Why choose SHT2002 UTI?
- Great accuracy and durability
- Why pay more! Accessible equipment price, lower ownership cost over product life cycle.
- SHT2002 UTI can replace major UTI brands with matching fitting!
- Comes with explosion proof certification, can use on hazardous location such as oil tanker, chemical tanker, tank farm, etc.
- Lloyd’s Type Approval certification, CE marking
- MED certification for use in Europe.
- Worldwide support
- Solid track record of SHT2002 UTI used by shipmanagement companies, oil major, ship owner, etc.
Product Specification
Ambient Operating Temperature
- -20°C (minimum) to 50 °C (maximum)
- (-4°F to 122°F)
Ullage Measurement
- Tape 30m ±1.5 mm (100ft ±1/16″)
- Minimum detectable liquid (bottom of tank), 4mm
- Maximum tank pressure 0.3 bar
- Metric or Inches reading
Oil/Water Interface
- Display and audible indication with ±2mm accuracy
Temperature Measurement
- -40°C to 70°C ± 0.2°, selectable °C or °F
- (-40°F to 158°F)
Battery
- Duracell MN1604 9V Alkaline Battery
Weight and Dimensions (Device only)
- Net weight of device: Approximately 5kg
- Net dimensions of device:
- Approximately 625mm x 260mm x 150mm
Approvals
- Ex ia IIB T4 Ga (-20°C Ta 50°C)
- Lloyd’s Type Approval Certificate
- EC Type Examination (Module B) Certificate
- Certificate Of Conformity (Module F)
Gas-Tight Portable UTI Solution
SHT2002 UTI Tape is a gas tight portable gauging device system designed to measure ullage, oil/water interface level, and temperature in single operation, it ensures accurate tank measurement across oil and chemical tanker.
