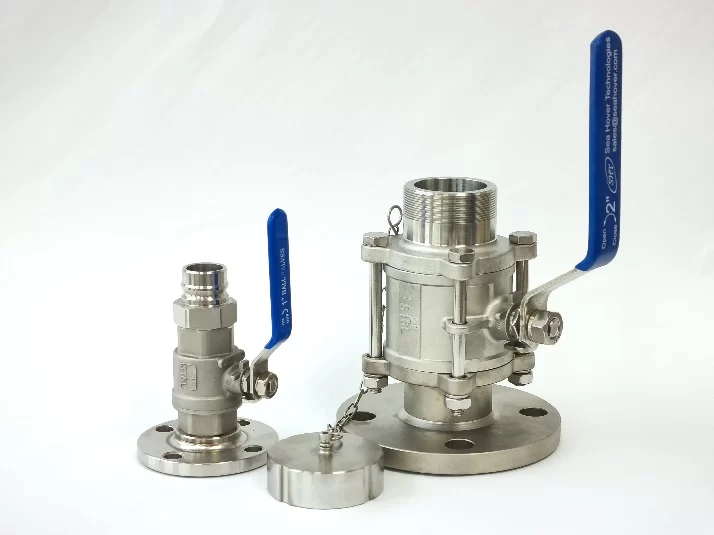

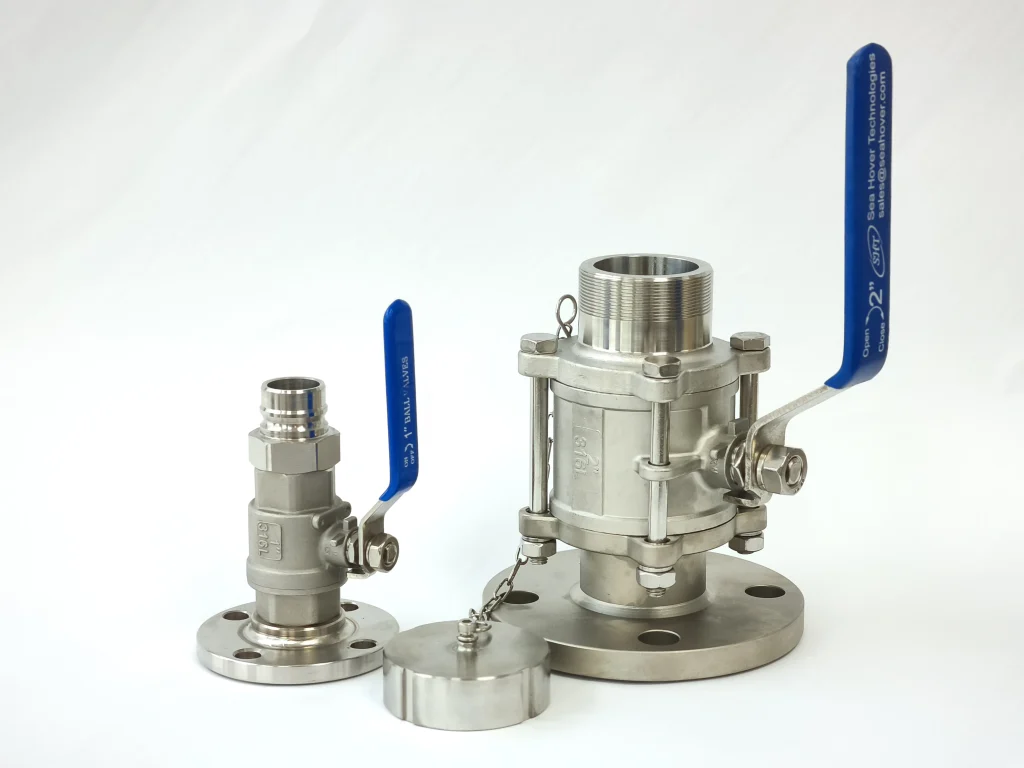

SHT Deck Valve
SHT Deck Valve is a specialized connecting valve for oil tanker, chemical vessel, and storage tank (tank farm), which can be used for quick connecting portable measuring equipment such as ullage temperature interface detector, liquid/gas sampler, tank pressure gauge, etc.
Features
- Stainless steel deck valve for use with SHT UTI and SHT deck equipment.
- Available in 1” and 2”
- Comes with weather cap
Why choose SHT Deck Gauge?
- Sturdy stainless steel body, suitable for use on vessel deck and tank farm.
- Why pay more! Accessible equipment price, lower ownership cost over product life cycle.
- Worldwide support
Product Specification

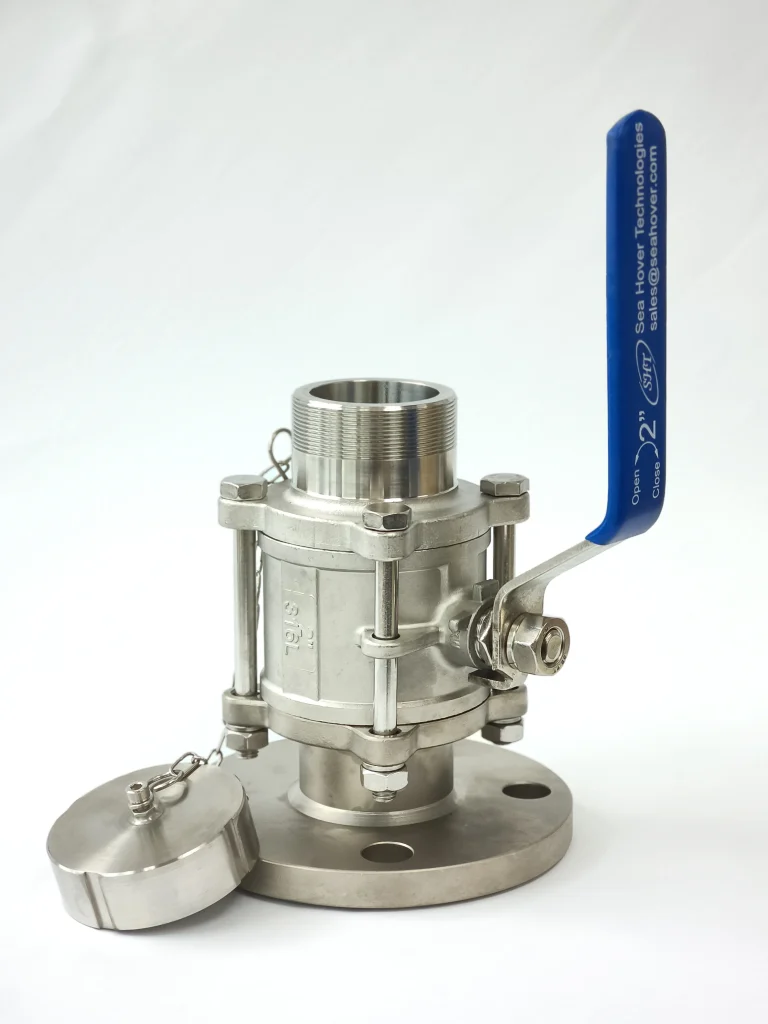

2” Deck Valve
- Stainless steel 316 body
- PTFE valve seal
- Nominal diameter: 2”
- Nominal pressure 10k
- One side 2” thread, one side flange JIS 50A-10K
- Weather cap
- Weight: 5.5kg

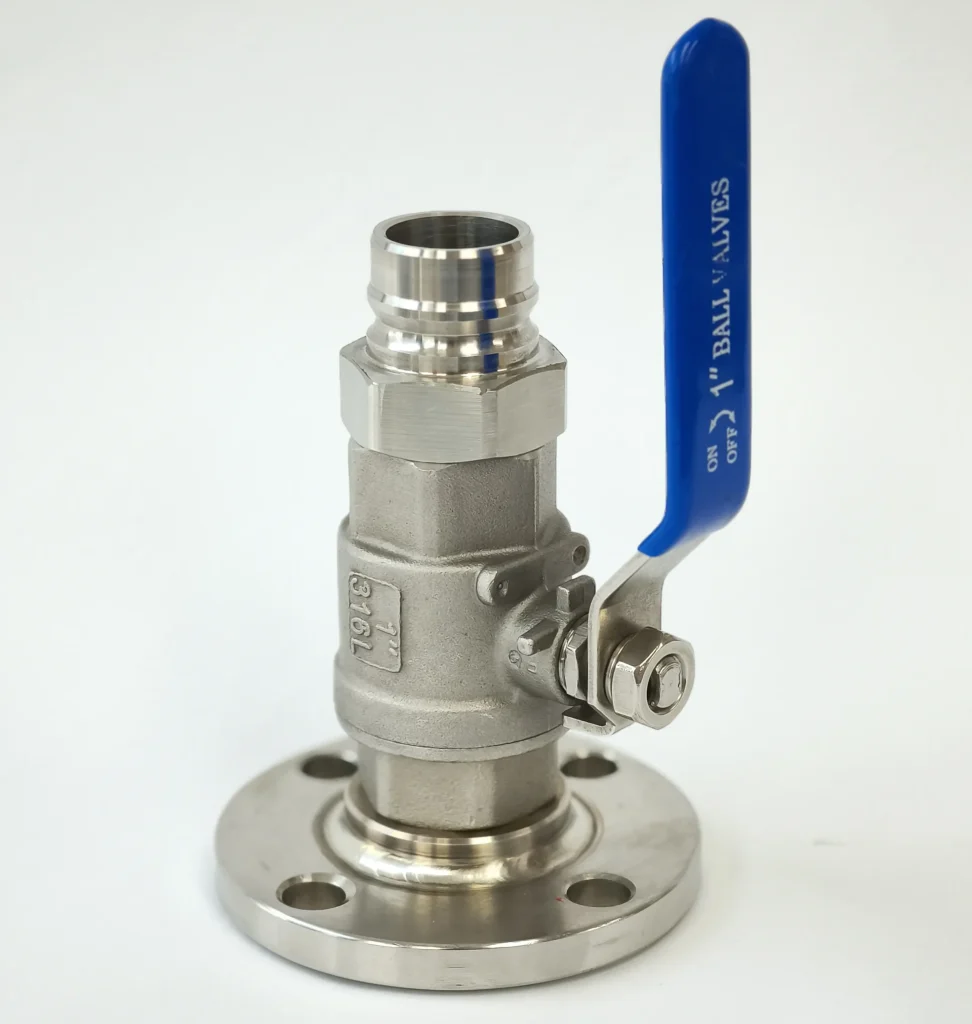

1” Deck Valve
- Stainless steel 316 body
- PTFE valve seal
- Nominal diameter: 1”
- Nominal pressure 5k
- One side 1” quick connection,
- One side flange JIS 25A-5K
- Weather cap
- Weight: 1.4kg
Specialized Tank Deck Connection Valve
SHT Deck Valve is a stainless steel connection valve designed for oil tankers, chemical vessels, and storage tanks. It enables quick and secure integration of portable measuring equipment, ensuring safe and efficient tank monitoring operations.
