SHT Deck Valve

SHT Deck Valve is a specialized connecting valve for oil tanker, chemical vessel, and storage tank (tank farm), which can be used for quick connecting portable measuring equipment such as ullage temperature interface detector, liquid/gas sampler, tank pressure gauge, etc.

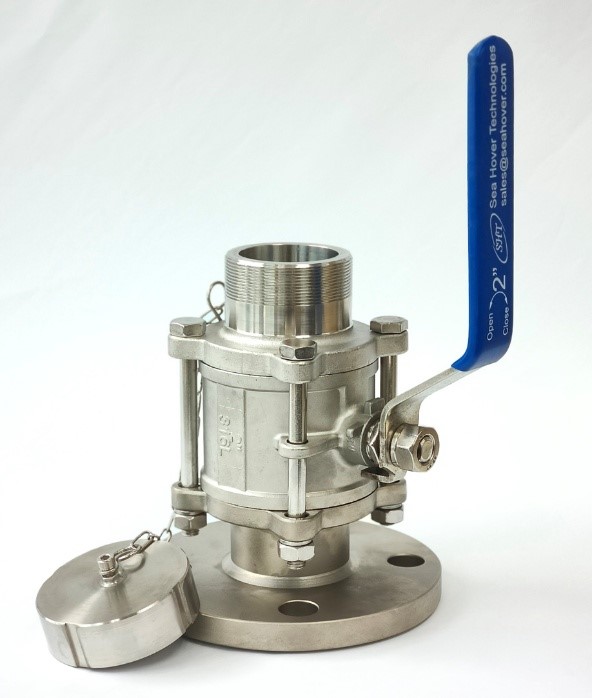

2” Deck Valve

  • Stainless steel 316 body
  • PTFE valve seal
  • Nominal diameter: 2”
  • Nominal pressure 10k
  • One side 2” thread, one side flange JIS 50A-10K
  • Weather cap
  • Weight: 5.5kg

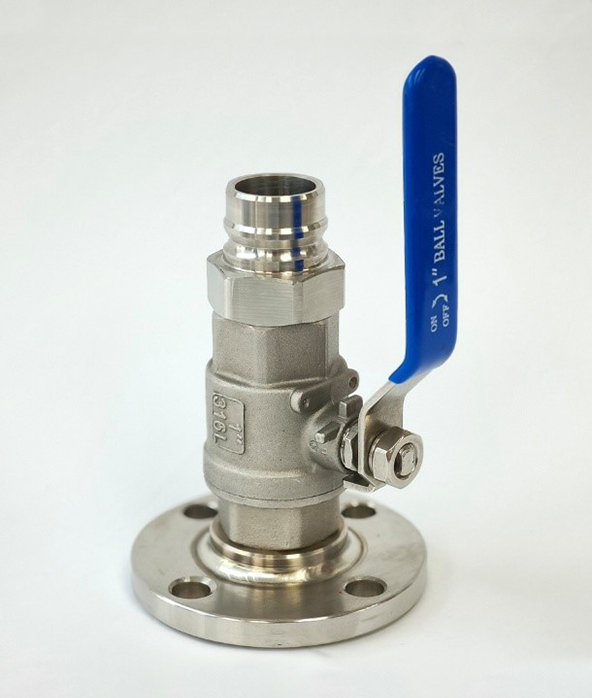

1” Deck Valve

  • Stainless steel 316 body
  • PTFE valve seal
  • Nominal diameter: 1”
  • Nominal pressure 5k
  • One side 1” quick connection,
  • One side flange JIS 25A-5K
  • Weather cap
  • Weight: 1.4kg

Remark: SHT Deck Valve to be paired with SHT UTI and SHT Deck Equipment only.
